The kitchen photographs like a magazine spread. Marble island, waterfall edge, a range that looks like it belongs in a restaurant.
Then you cook Thanksgiving in it.
Suddenly the roasting pan has nowhere to land. The oven door won’t open all the way. Your partner is trapped against the fridge while you drain pasta, and the whole family keeps cutting through your prep zone to reach the back door.
Layout is the thing showrooms can’t sell you, because a showroom is empty. Nobody’s frying bacon in it. Nobody’s loading a dishwasher while someone else fills a stockpot.
The kitchen work triangle — sink, stove, refrigerator — has guided good design since the 1940s, and University of Missouri Extension still uses it to plan functional work centers. Break it, and every meal fights you back.
Here are 21 popular kitchen layouts that look incredible in listings and slowly drive people insane the moment they actually cook.

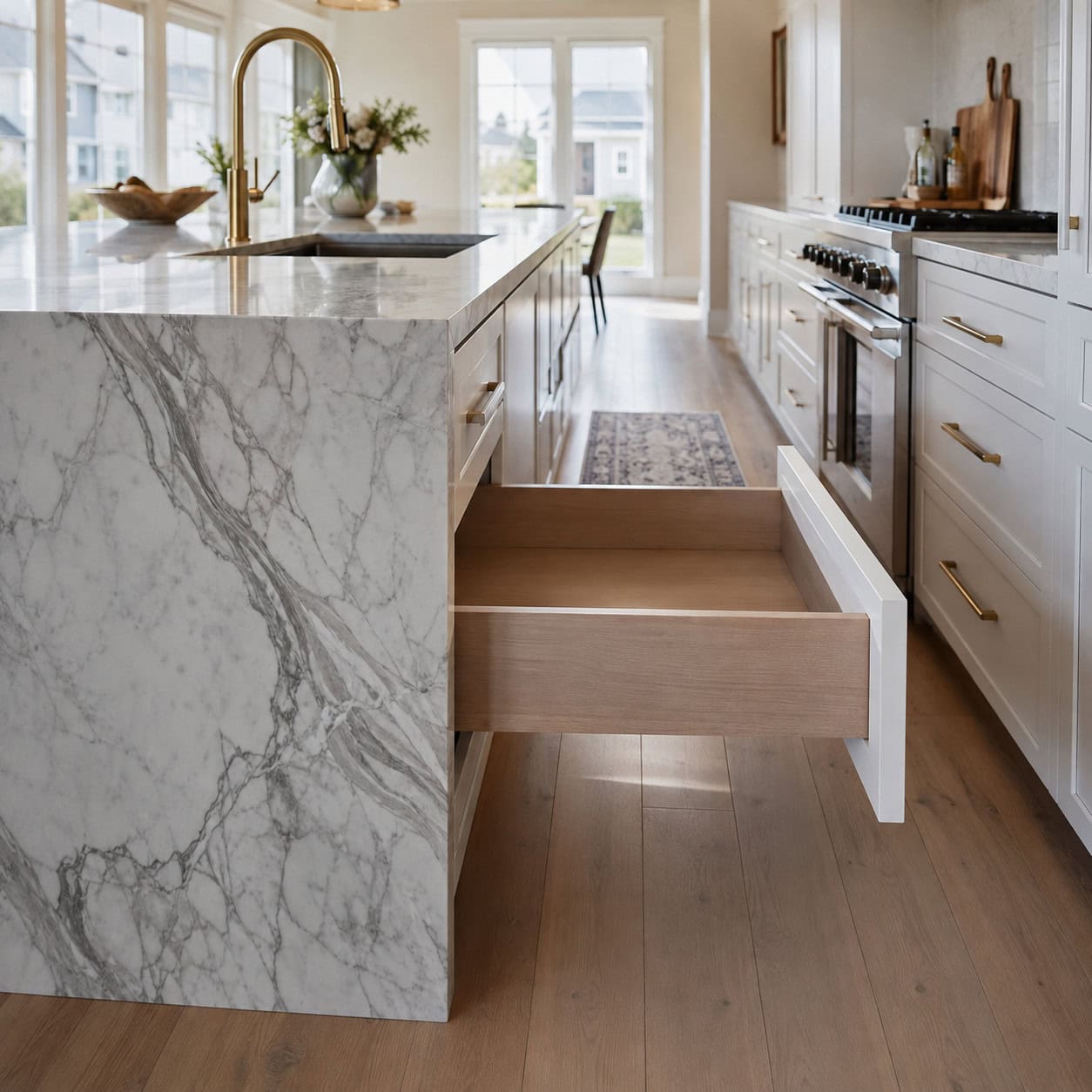

1. The Oversized Statement Island
It’s the hero of every showroom. Ten feet of stone, seating for six, a slab you could land a plane on.
Then you get it home and the aisle around it shrinks. Designers want at least 42 to 48 inches of clearance around an island. Drop below that, and a single open drawer blocks the whole walkway.
Now two people can’t pass. One person can’t open the dishwasher and let someone by at the same time.
The island stops being furniture and becomes an obstacle course you walk around all night. Bigger island, smaller kitchen — that’s the trade nobody mentions.

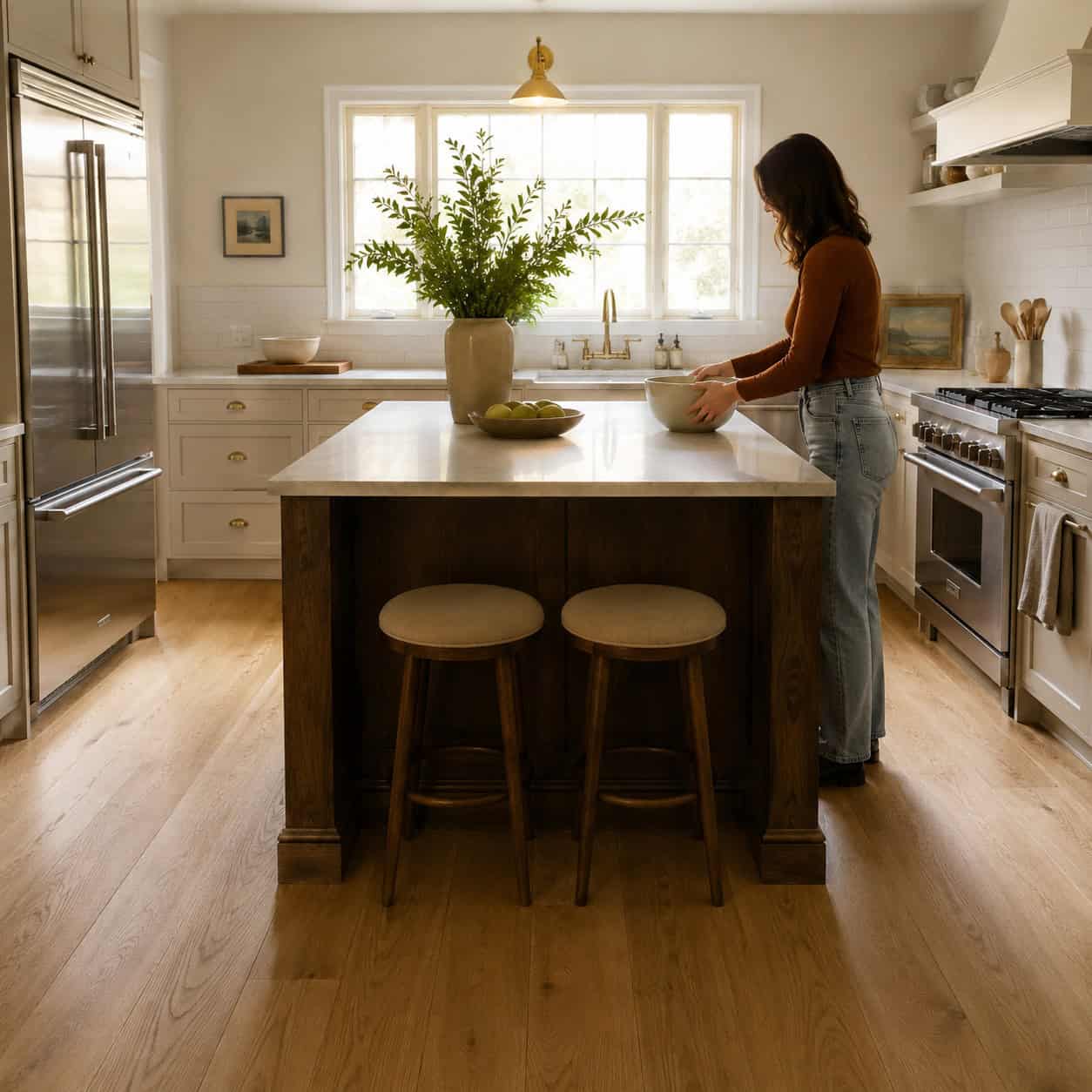

2. An Island Dumped in the Middle of the Work Triangle
Where does the island go? Usually dead center. That’s the problem.
An island is supposed to support the triangle, not sit inside it. Park it between the fridge, sink, and stove and you’ve built a wall in your own commute.
You walk laps. Fridge to counter, around the island. Sink to stove, around the island. A hundred little detours a night.
Designers call this the most common island mistake there is. The slab looks like a centerpiece and functions like a road divider.

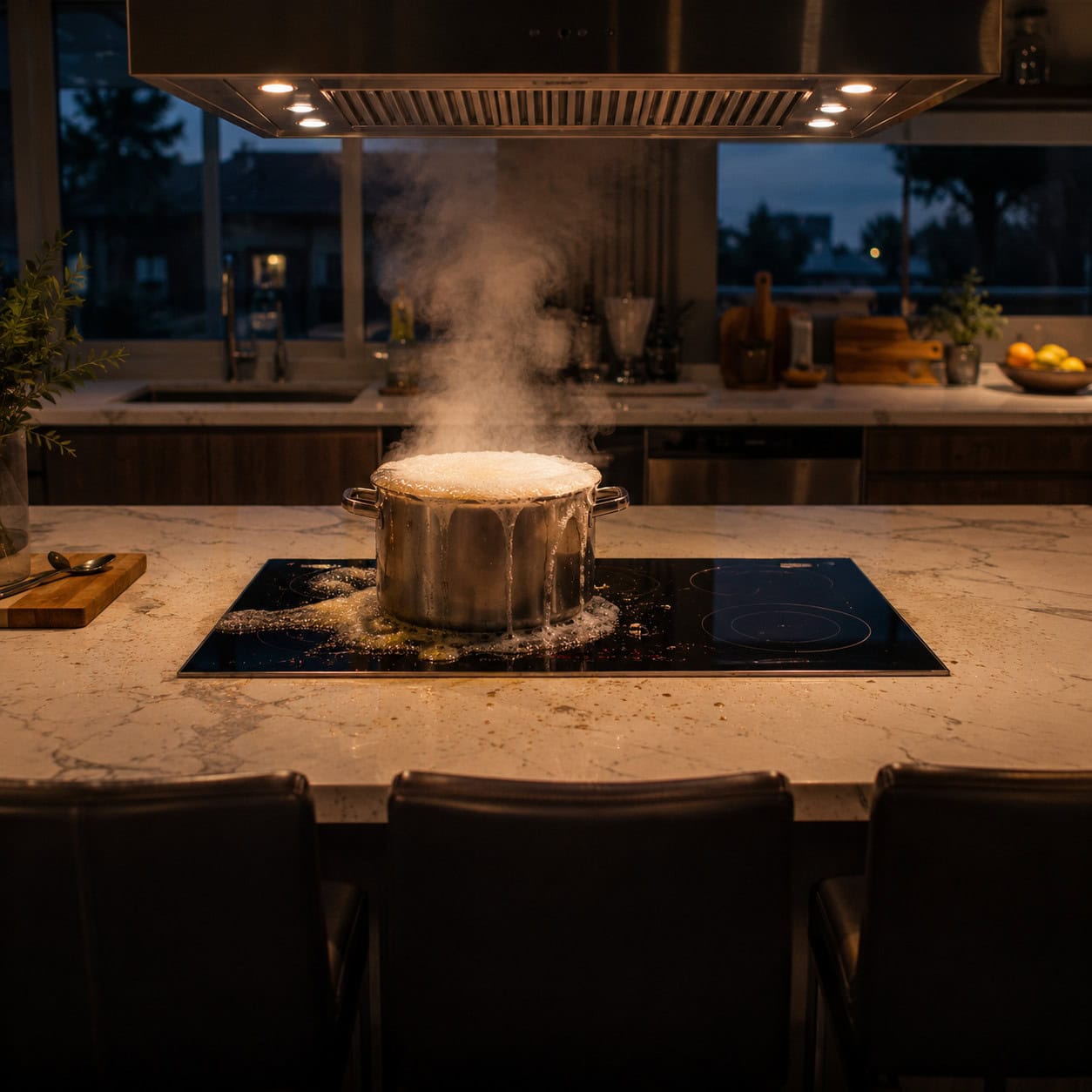

3. The Cooktop on the Island
The pitch is social. Face your guests, chat while you sear, be the host and the chef at once.
The reality is grease. There’s no backsplash wall to catch splatter, so oil flings across the pretty stone and toward whoever’s sitting there.
You also need a bulky overhead hood dropping into the sightline or a downdraft that never pulls hard enough. And code-conscious layouts want generous counter on both sides of the burners.
Picture your guests three feet from a pot boiling over. That’s the dream, up close.

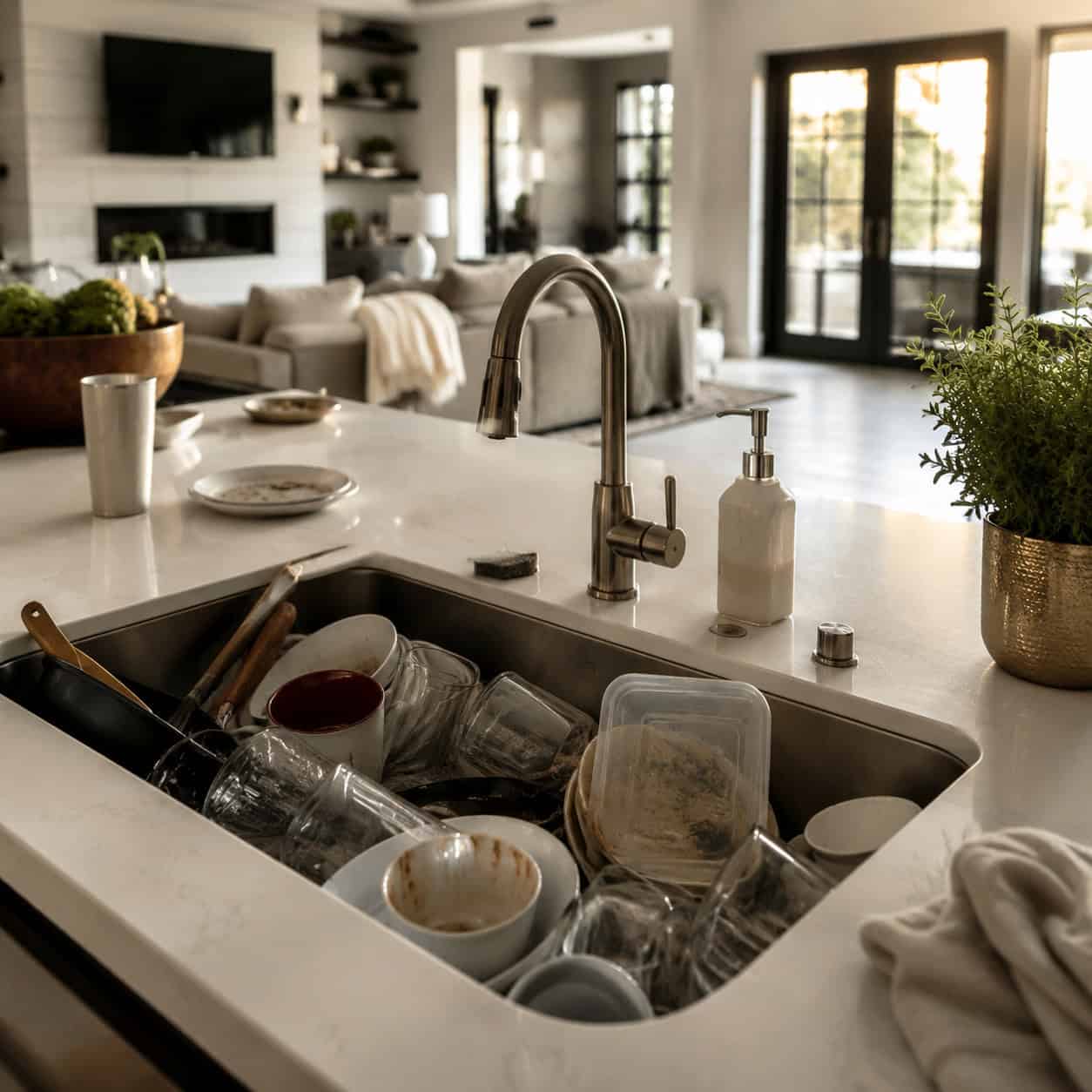

4. The Sink on the Island
Stunning in photos. A clean basin set into a slab, a tall faucet arcing over it, natural light pouring in.
Then dinner happens. That gorgeous slab fills with dirty dishes on full display to the entire room — and in an open plan, to everyone on the couch too.
There’s no cabinet door to hide behind. The mess is the centerpiece now.
If you go this route, at least plan the plumbing right. A single big bowl handles more than a divided one, and it helps to know whether a single or double sink suits how you cook before the counter’s cut.

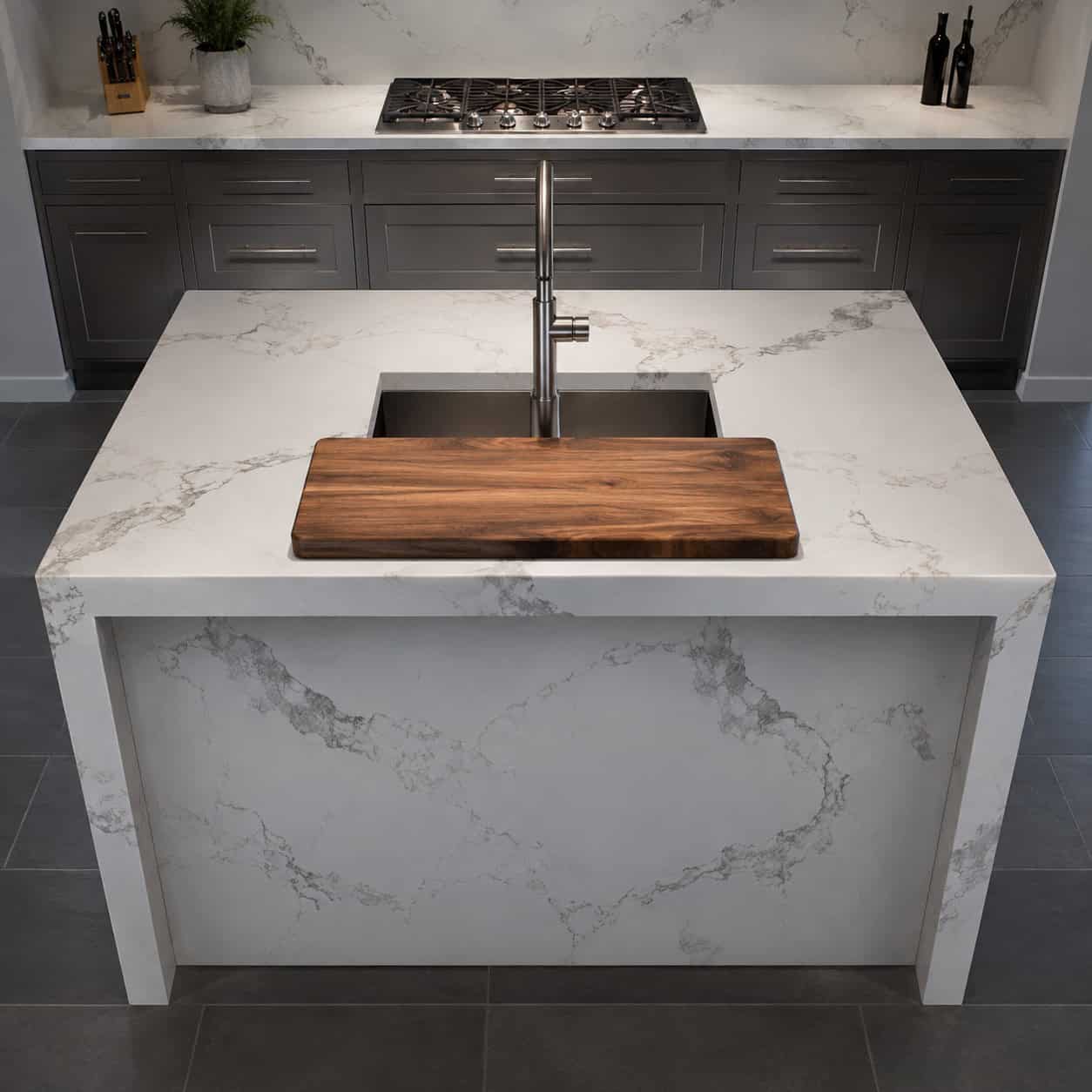

5. The Perfectly Centered Island Sink
Symmetry is seductive. Center the sink, flank it with equal counter, everything balanced.
But a sink smack in the middle splits the island into two half-sized workspaces. Neither is big enough to actually prep on.
You want one long continuous run to spread out a cutting board, bowls, and a sheet pan. Symmetry gives you two cramped shelves instead.
Offset the sink. Ugly on paper, better in practice.

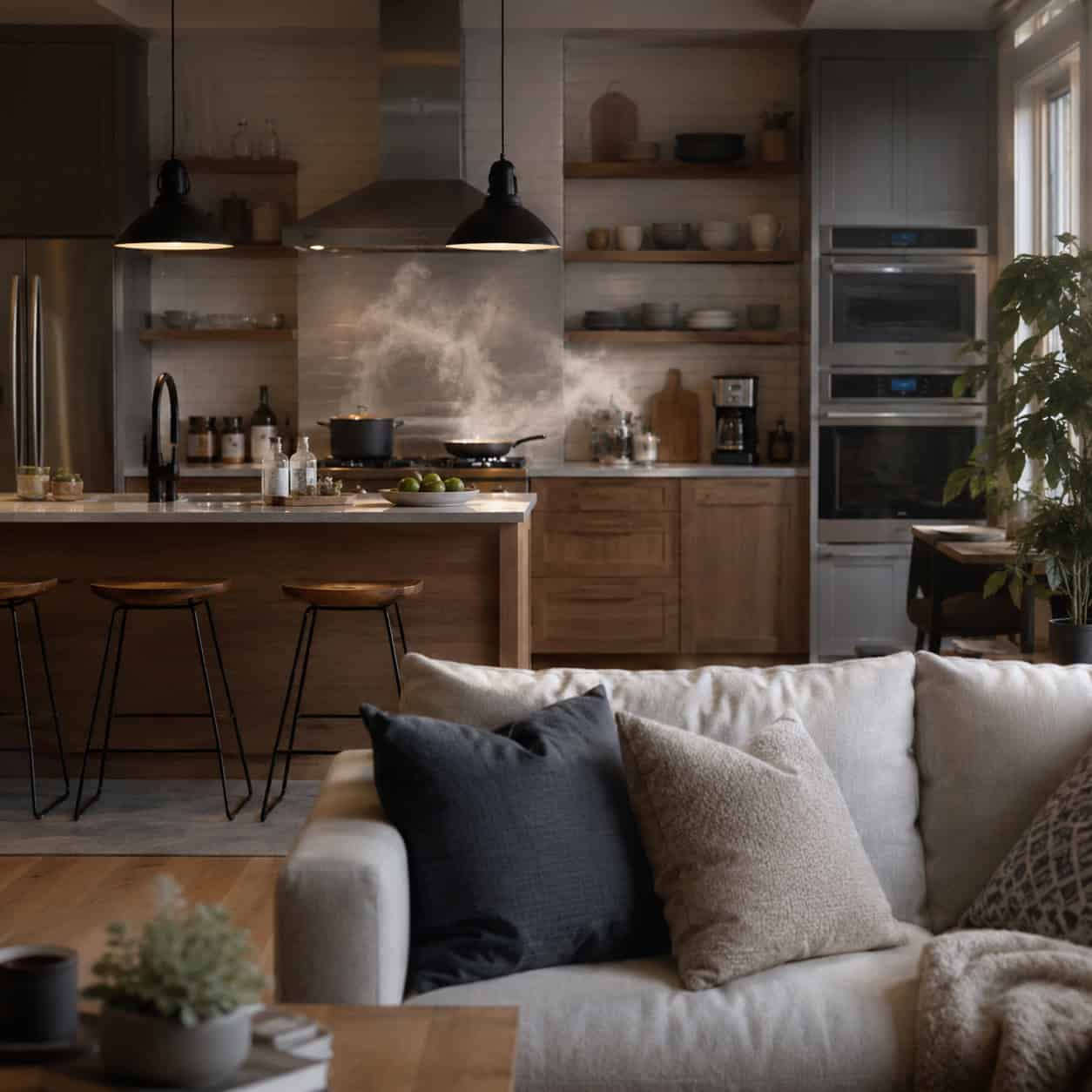

6. The Fully Open-Concept Kitchen
For 20 years this was the whole point of a renovation. Knock down the wall, join the kitchen to everything.
Then you live in it. Onion smoke drifts to the sofa. The dishwasher’s hum competes with the TV. Every dirty pot is visible from the dining table.
Open concept is now one of the most regretted kitchen trends, and the reaction is already here — “back kitchens” and broken-plan layouts that put a wall between the cooking and the company.
Walls did one job well. They contained the chaos.

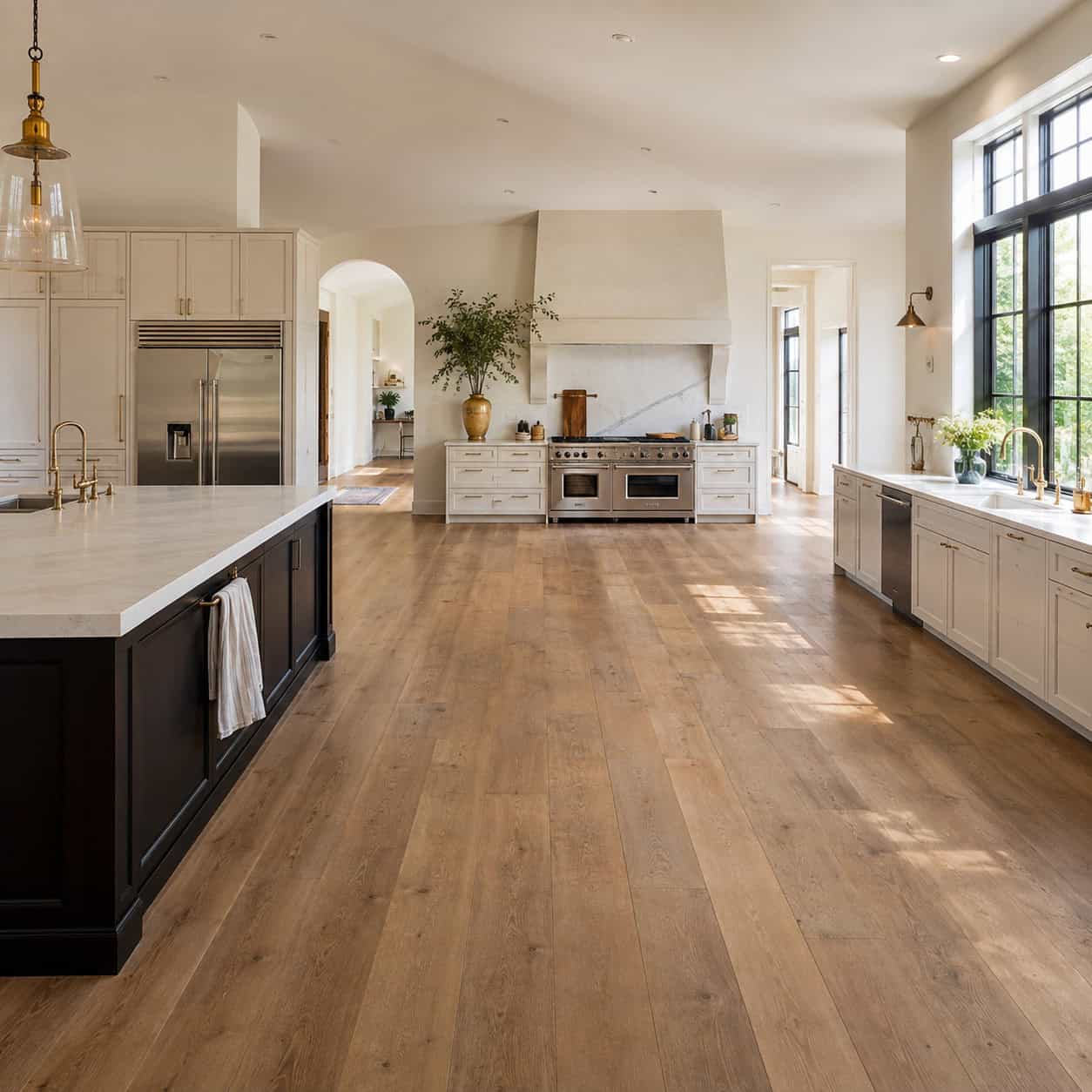

7. The Stretched-Out Great-Room Triangle
The opposite of a cramped kitchen, and just as bad. In a giant open room, the fridge, sink, and stove drift to distant walls.
Each leg of the triangle should stay between 4 and 9 feet. Blow past that and a weeknight dinner turns into cardio.
Grab the milk, walk. Rinse the pan, walk. Check the oven, walk back across the room.
Bigger isn’t better. It’s just more steps between you and dinner.

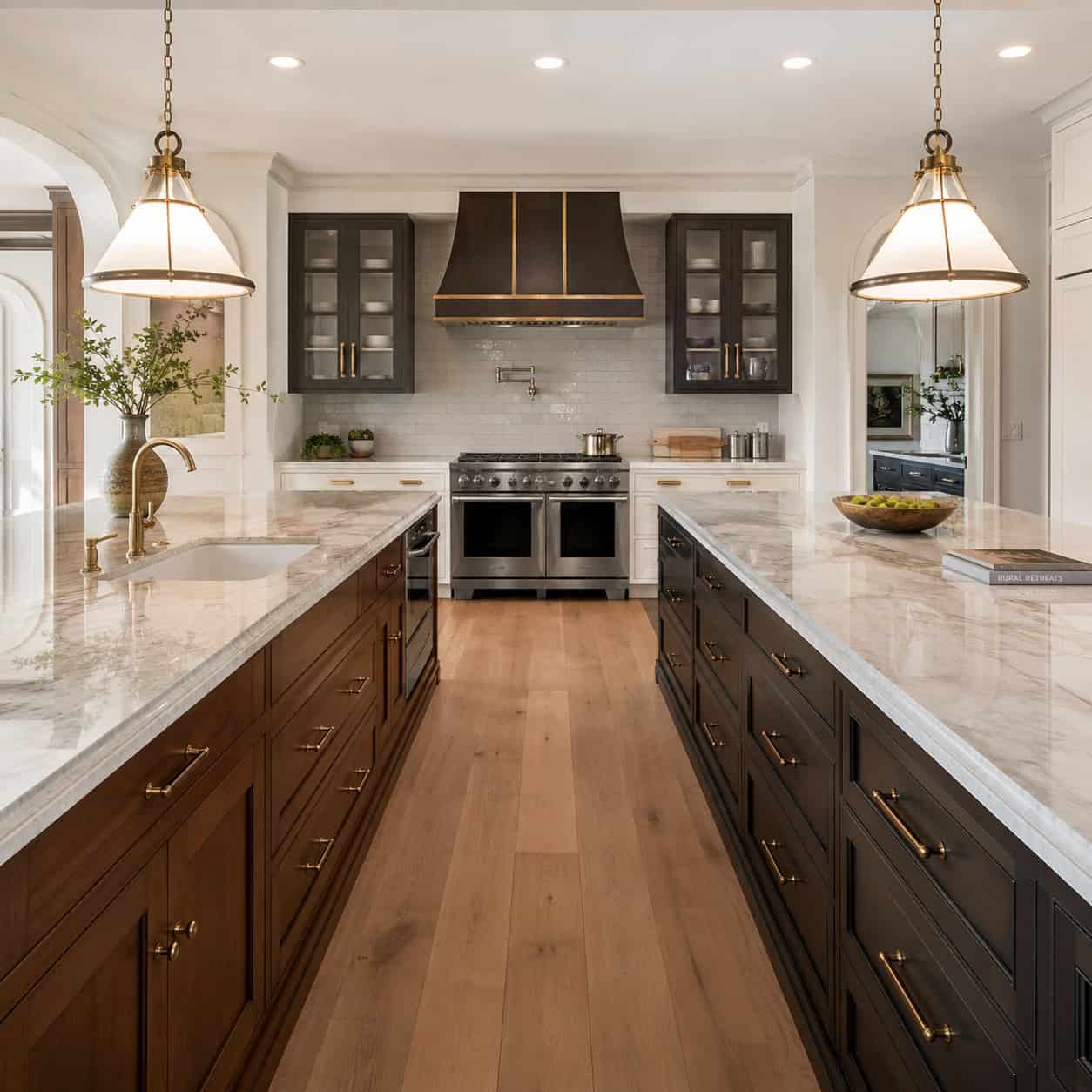

8. The Double Island
Two islands. The ultimate trophy-kitchen flex, the kind that lands a house on the market with a premium.
Now count the obstacles. The cook has to navigate around two massive blocks of stone, and the working zones get shoved even farther apart to make room.
Prep at one, plate at the other, wash somewhere else entirely. It’s a lot of pivoting for something sold as efficient.
Impressive to tour. Exhausting to cook in.

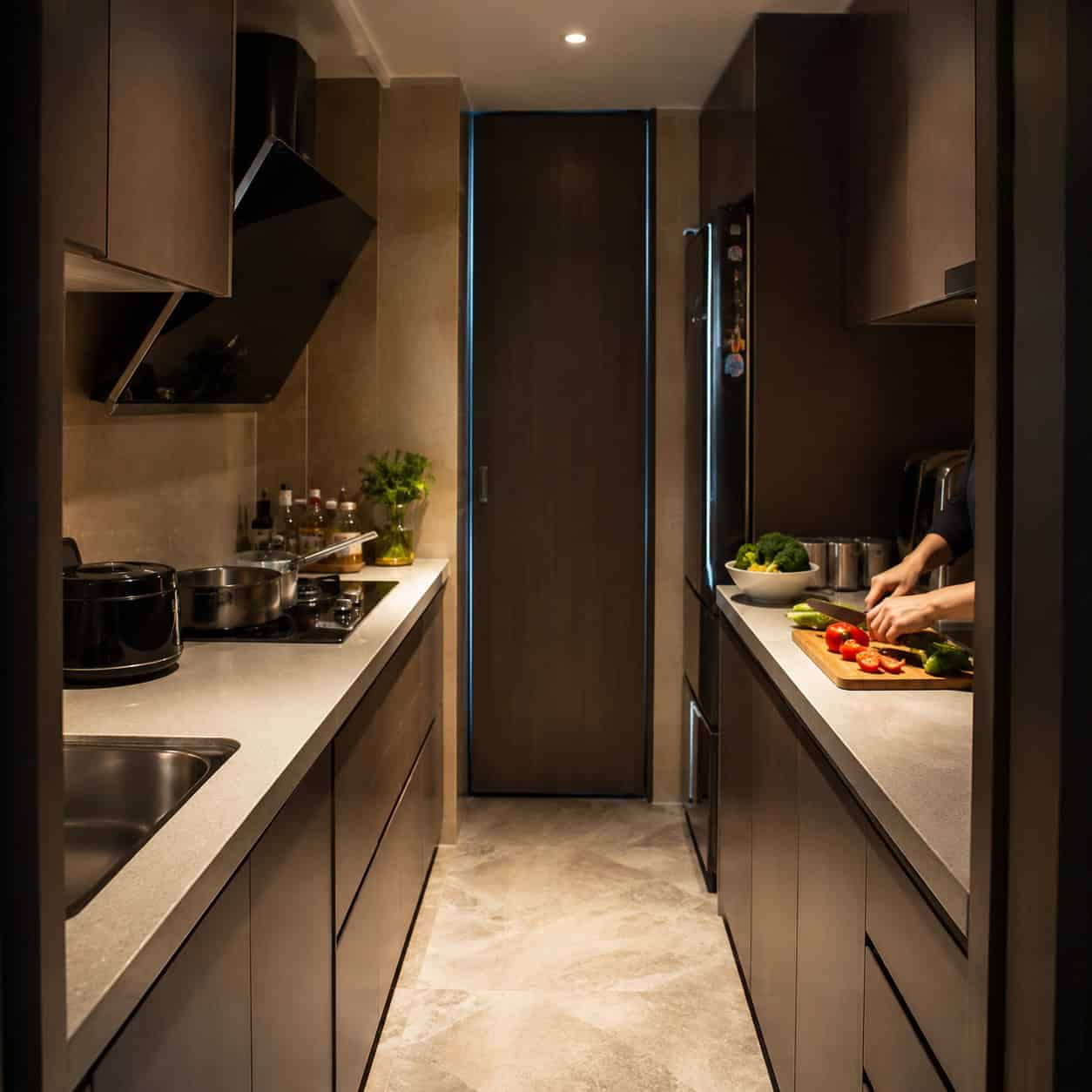

9. The Classic Galley
Chefs love it. Two parallel runs, everything an arm’s turn away, no wasted steps.
For one cook, it’s genuinely efficient. For two, it’s a tunnel.
The second a partner steps in — or a toddler, or a dog — everyone’s crashing. There’s no lane to pass, only a corridor to share.
Beloved by solo cooks. Loathed by families. Both camps are right.

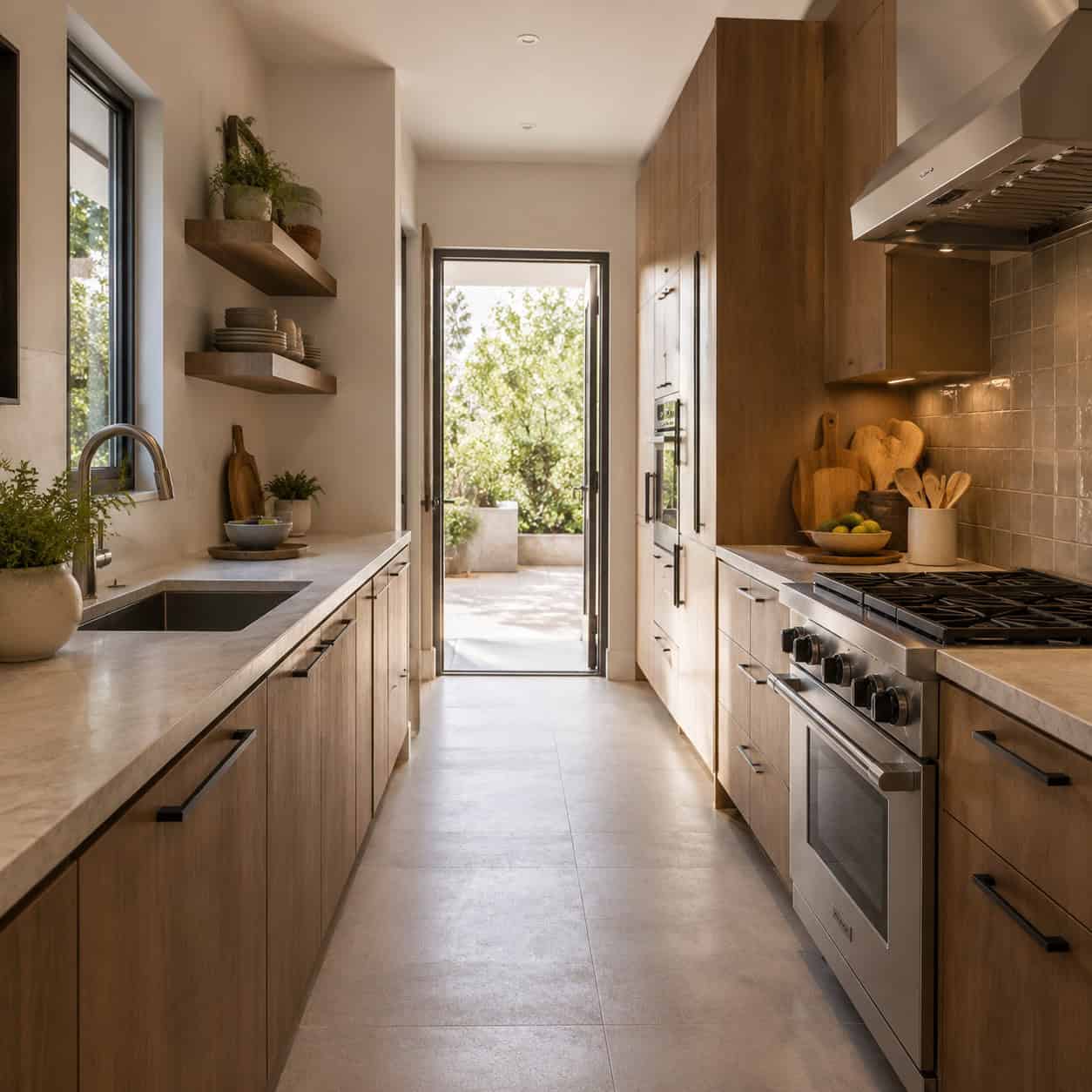

10. The Pass-Through Galley That Became a Hallway
Take a galley and put a door at each end. Now it’s not a kitchen — it’s a shortcut.
Everyone in the house cuts through it. To the garage, to the yard, to the laundry room, right through your work corridor mid-sear.
You’re stationed at the stove and there’s a parade behind you. Someone’s always reaching past, squeezing by, apologizing.
A kitchen shouldn’t double as a thoroughfare. This one can’t help it.

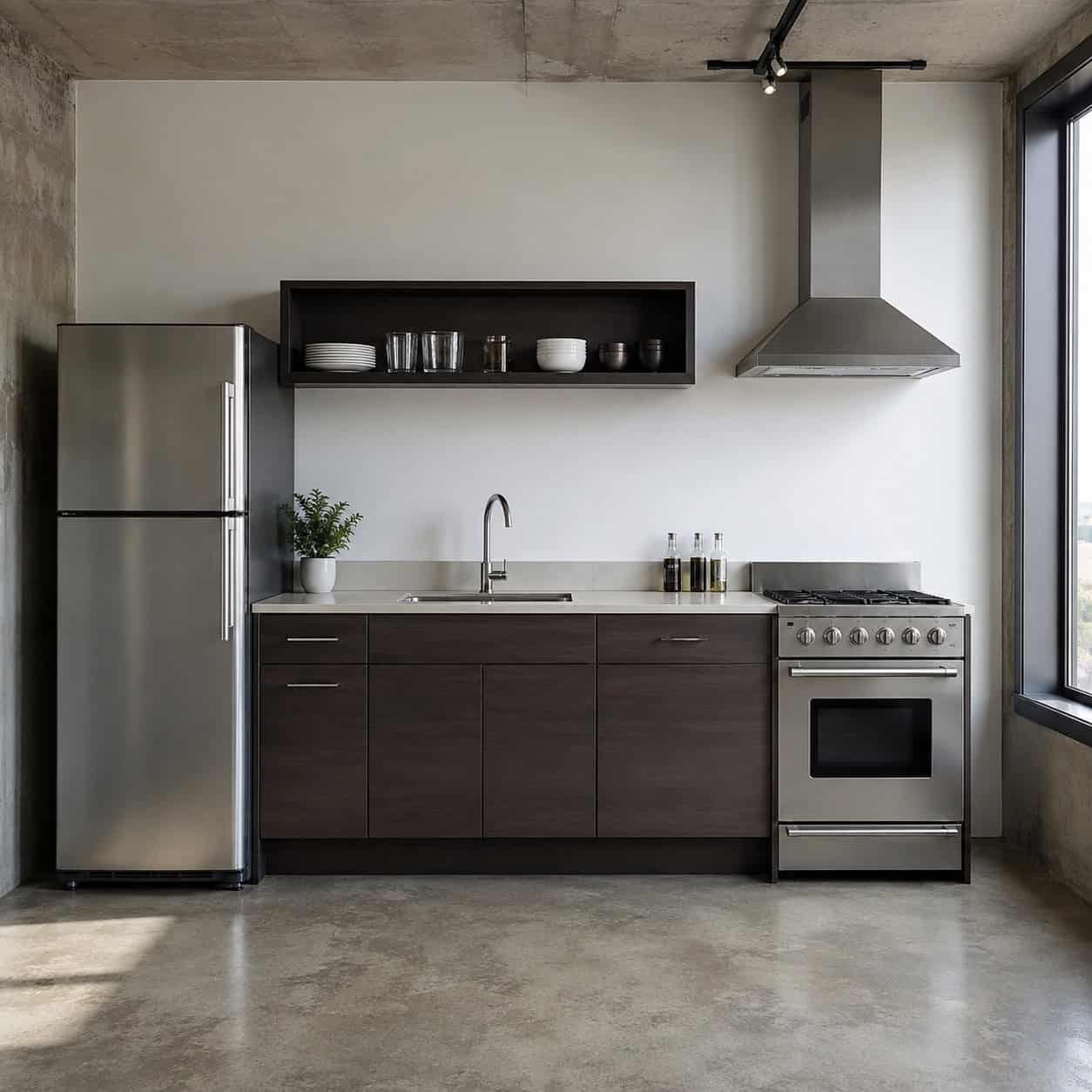

11. The Single-Wall (One-Wall) Kitchen
Loft-sleek and studio-friendly. Everything lined up on one wall, clean as a rendering.
But a straight line isn’t a triangle. Stretch fridge, sink, and stove into a row and you’re side-shuffling from end to end all night.
There’s rarely enough landing space between appliances either. Nowhere to set the hot pan, nowhere to drop the grocery bag.
It looks like restraint. It cooks like a compromise.

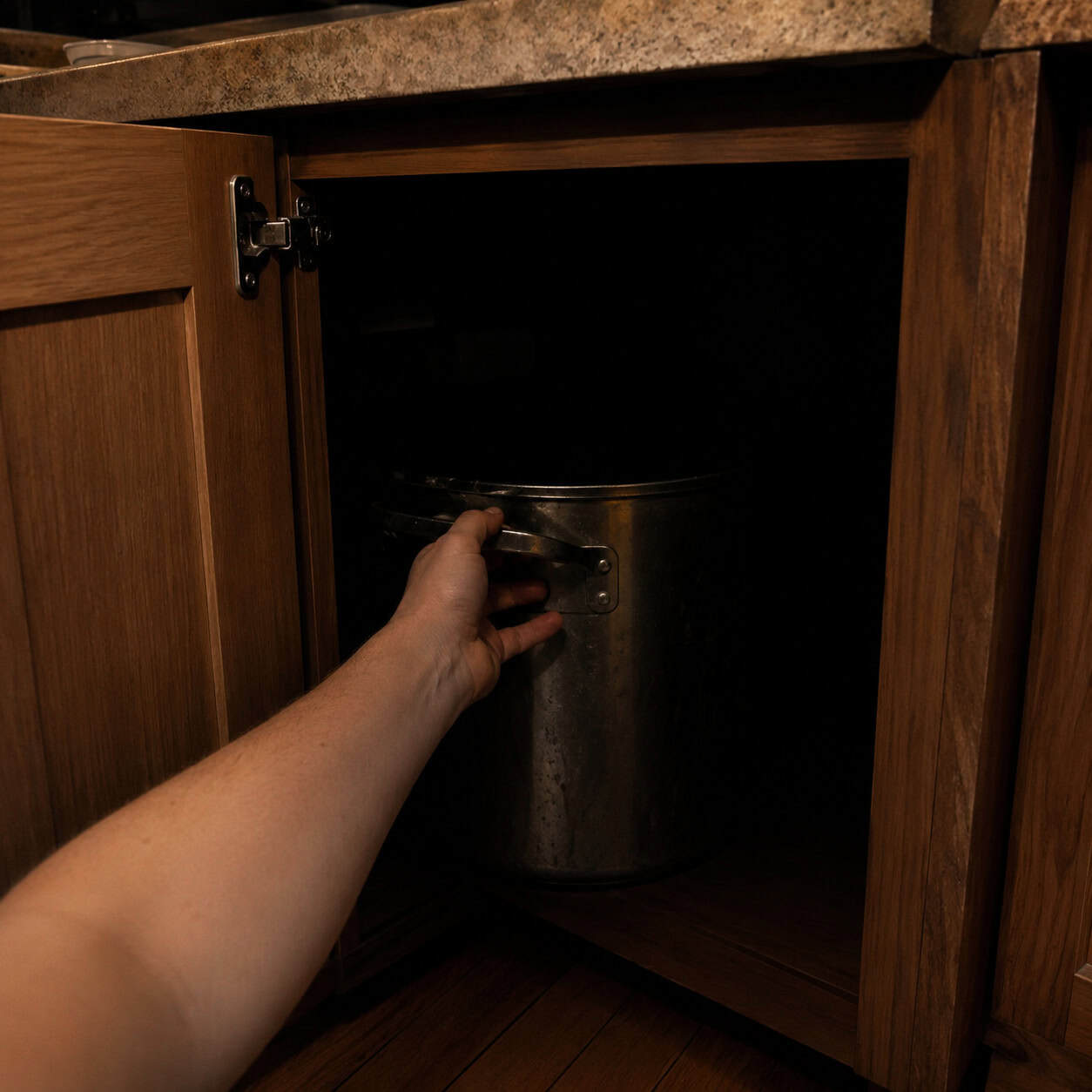

12. The L-Shaped Blind Corner
Where two cabinet runs meet at a right angle, something has to give. Usually it’s the corner.
You get a deep, dark void behind the cabinet face. The daily ritual: crouch, reach, twist, and fish out the stockpot you shoved in there last month.
Some people just surrender the space entirely. A whole cabinet’s worth of storage, written off as unreachable.
Lazy Susans and pull-outs help. The blind corner still eats more than its share.

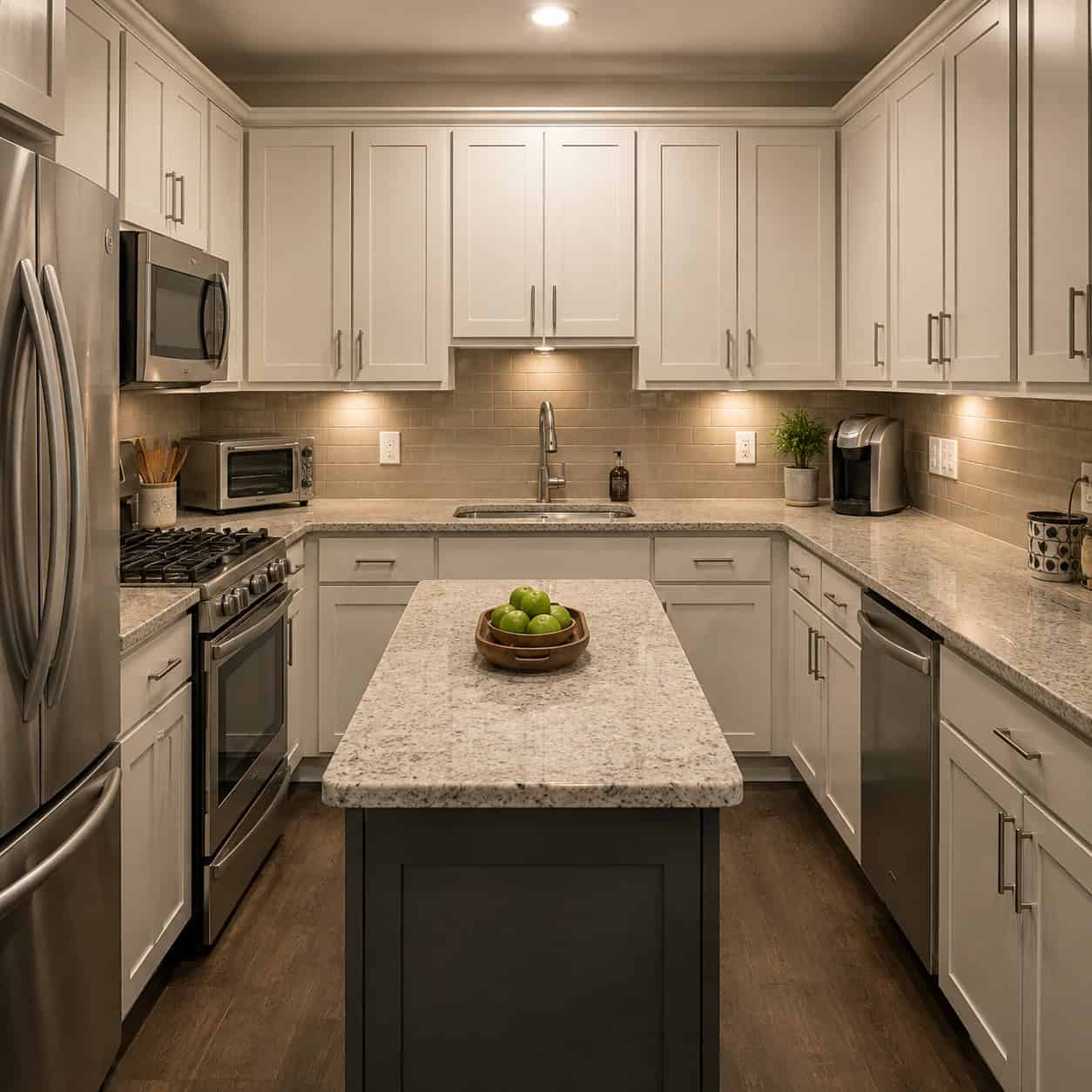

13. The U-Shape With an Island Crammed In
A U-shape already wraps you in counter on three sides. It’s cozy and complete on its own.
Then someone wedges an island into the middle of the U. The roomy kitchen becomes a narrow racetrack with aisles too tight to turn around in.
This is the trying-to-have-it-all mistake. Three walls of cabinets plus an island equals no floor left to stand on.
Sometimes the island is the thing you leave out.

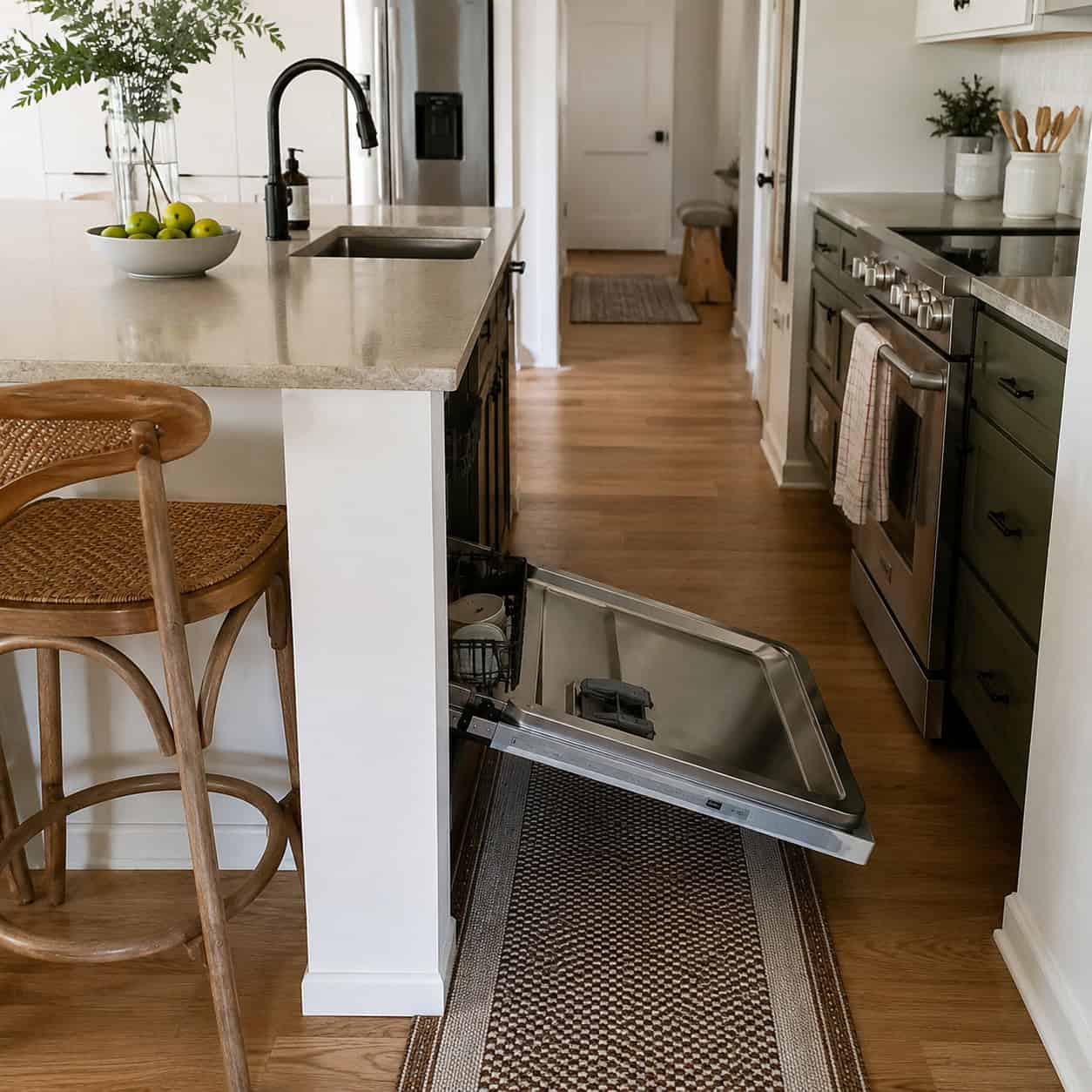

14. The Peninsula Pinch Point
A peninsula is an island with one end attached, and that attached end is the whole problem. Traffic can only flow one way in and out.
So everything funnels through a single choke point. Add stools that jut into the walkway and it’s worse.
Swing a dishwasher door open into the cabinets across the pinch and nobody’s getting past until it’s closed.
One opening, all the traffic. Math that doesn’t work at dinnertime.

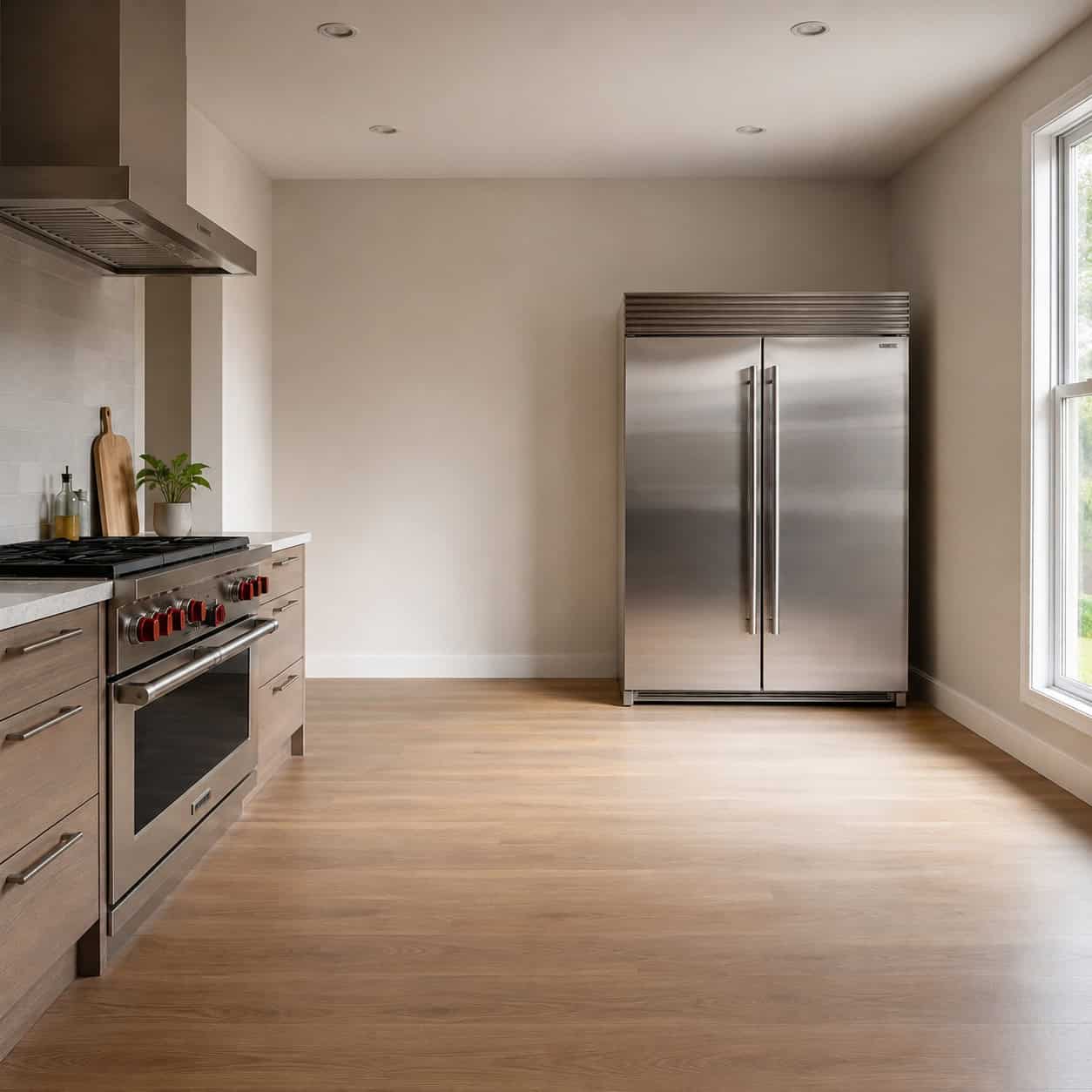

15. The Marooned Refrigerator
The fridge is big and boxy, so people banish it to a far wall for a cleaner look. Aesthetics win, function loses.
Every time you need produce, eggs, or a cold drink, it’s a trip. The triangle breaks the moment the fridge leaves the loop.
And you go to the fridge constantly — more than the stove, more than the sink.
Marooning it looks tidy in a photo. It adds a mile to your week.

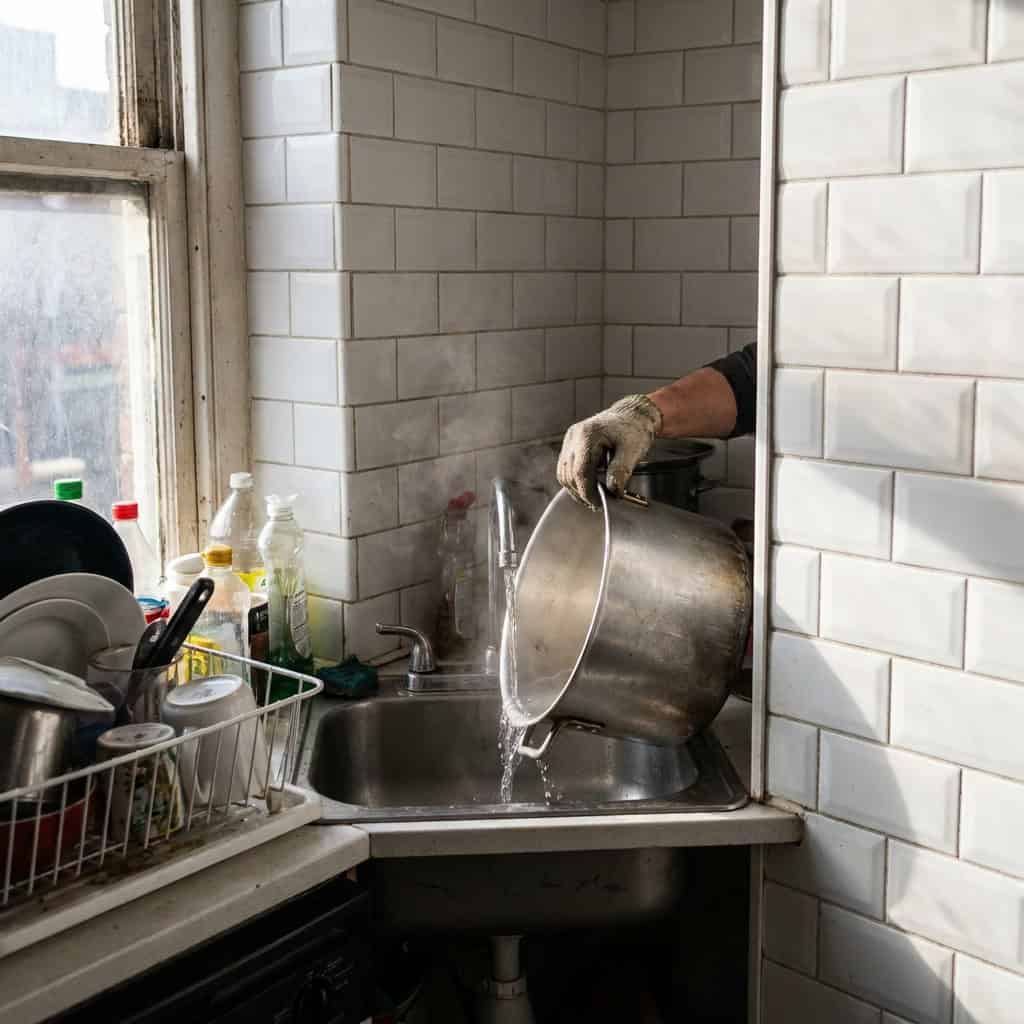

16. The Corner Sink
Tucking the sink into a corner frees up wall space, which sounds smart. Then you wash a pot.
There’s no comfortable landing on one side — you’re jammed against the return wall. Two cooks at once bang elbows.
Loading the dishwasher gets awkward too, since the corner cramps how the door and racks line up. Before you commit, it’s worth knowing what to do with the dead space behind a corner sink, because there’s always some.
Saves a wall. Costs you comfort every single day.

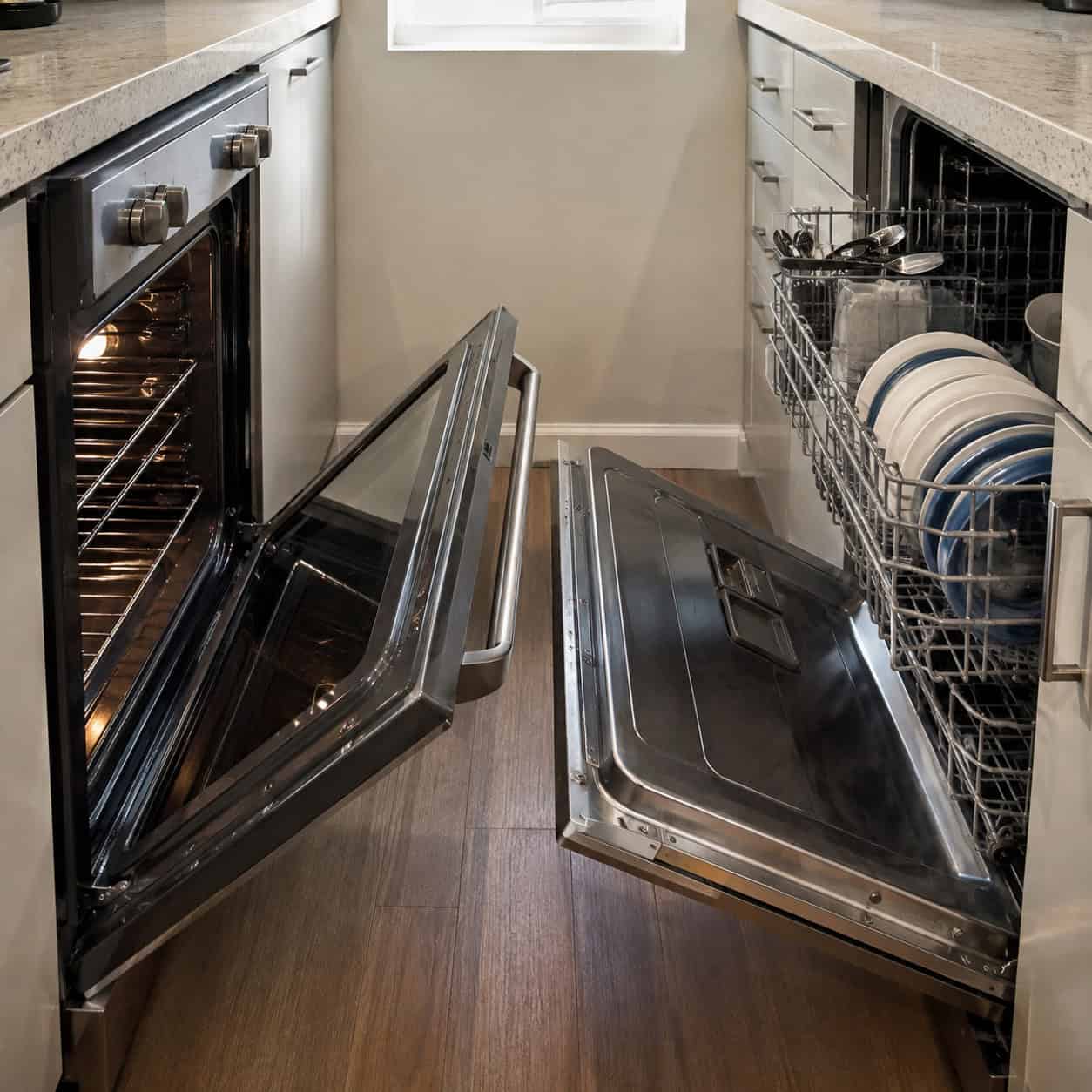

17. The Appliance Doors That Collide
Kitchens get drawn with every door closed. Real life opens them.
Open the oven and the dishwasher across the aisle won’t clear it. Open the fridge and it hits the cabinet. Try to stand in front of the open oven and there’s no room to stand.
Designers say this is where kitchens most often fail — not on the plan, but on the day the appliances swing.
Check the swing before you sign off. A layout that only works closed doesn’t work.
18. No Landing Zone Beside the Range
You pull a heavy roasting pan out of a 425-degree oven. Where does it go?
If the answer is “across the room,” the layout failed you. Designers want at least 9 to 15 inches of clear counter right beside the cooktop.
Without it, you’re carrying scorching cast iron looking for a place to set it down. That’s not an annoyance — it’s a burn waiting to happen.
Landing zones aren’t a luxury. They’re the safest inches in the kitchen.
19. The Two-Cook Aisle That Only Fits One
Two people cook here. The aisle was sized for one.
Anything under about 42 to 48 inches turns shared cooking into a constant side-shuffle. Someone opens the fridge, someone bends into the dishwasher, and nobody can move.
It’s a small dimension with an outsized effect on daily peace.
Here’s how the clearance shakes out in practice:
| One-Cook Aisle | Two-Cook Aisle | |
|---|---|---|
| Width | 36 in minimum | 42–48 in |
| Passing room | None to spare | Room to slip by |
| Two open doors | Blocked | Still workable |
| Best for | Solo cook | Shared cooking |
If two of you cook, spend the extra six inches. It buys back every dinner.

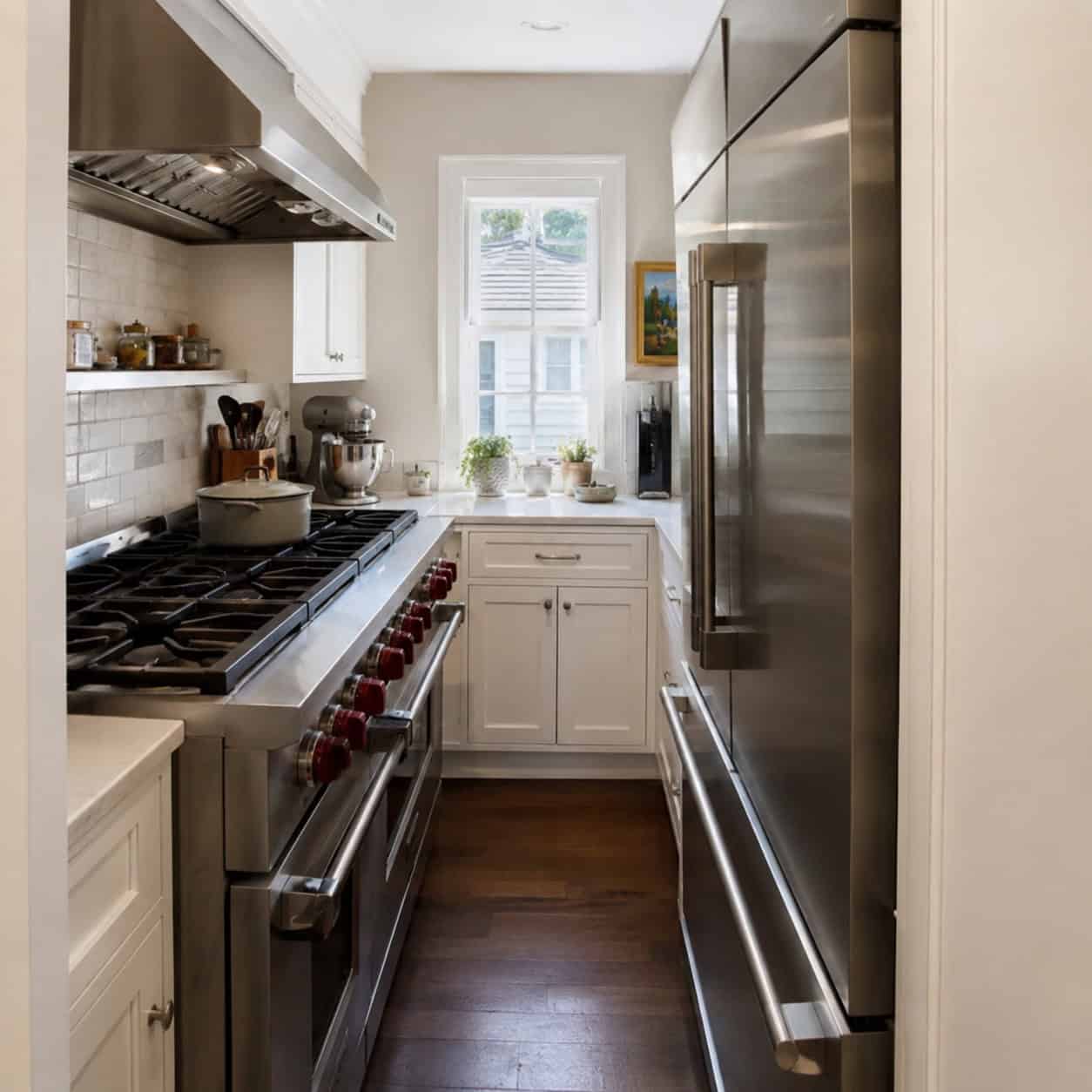

20. Pro-Style Appliances in a Starter-Size Kitchen
The 48-inch commercial range. The oversized side-by-side fridge. They scream chef’s kitchen.
In a modest footprint, they scream too loud. The range eats your only landing zone, the fridge sticks out into the walkway, and suddenly there’s nowhere to prep.
Serious hardware needs serious space around it. Cram it into a small room and it fights the room instead of serving it.
Buy the appliance the kitchen can hold — not the one that impresses in the showroom.

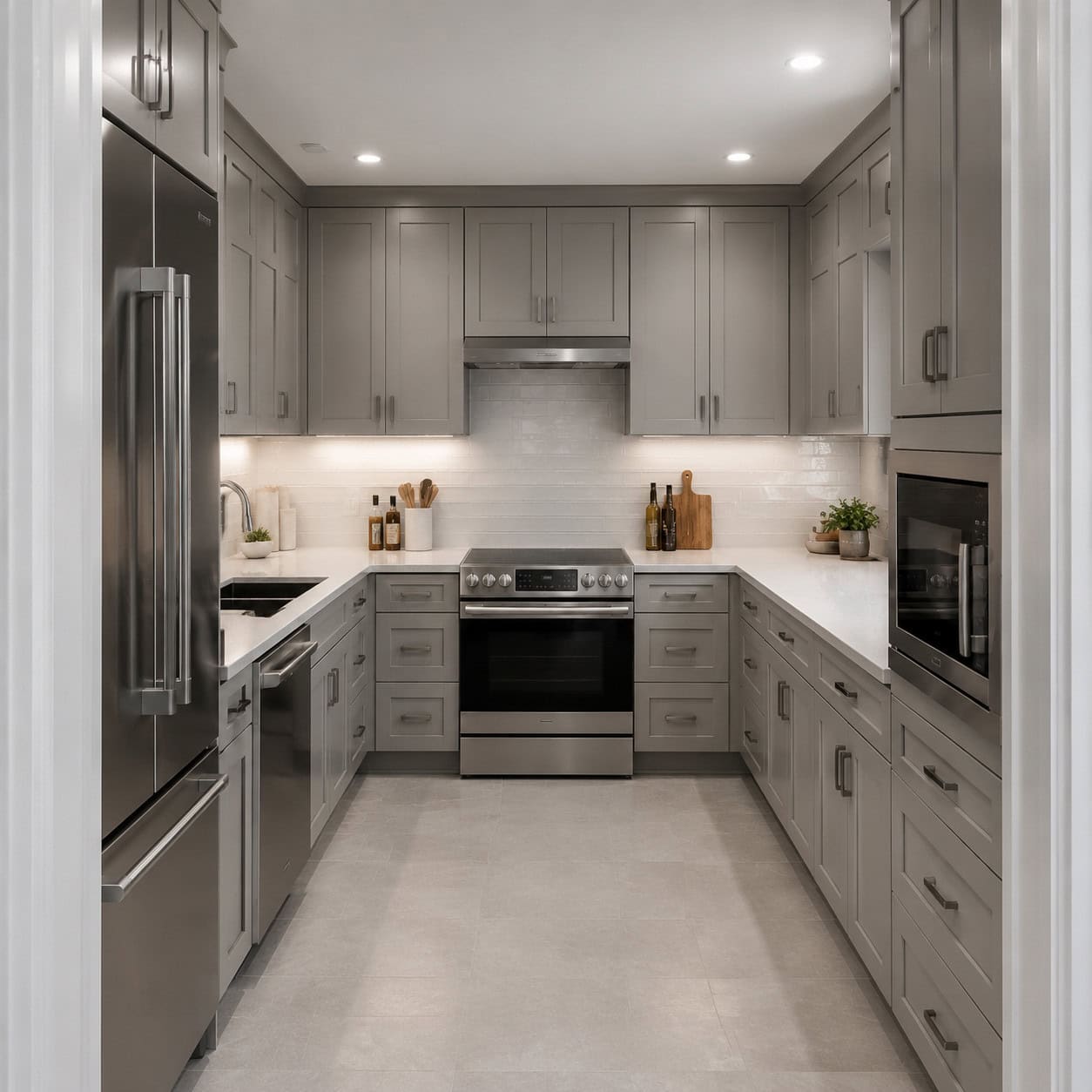

21. The G-Shaped Kitchen
A G-shape is a U-shape with a fourth partial wall or peninsula bolted on. Maximum storage, maximum enclosure.
That fourth run boxes the cook in with a second internal corner and a narrow entry point. You get every cabinet you ever wanted and barely room to turn.
It’s the most closed-in shape on this list. Great for a solo cook who never has help; claustrophobic the moment anyone joins.
All that storage comes at the price of breathing room.
The Takeaway
Almost every kitchen on this list looks fantastic. That’s exactly why people build them.
Layout is invisible in a photo and unmissable at 6 p.m. on a Tuesday. The University of Illinois kitchen planning standards nailed the fundamentals decades ago, and they still hold: keep the triangle tight, protect the aisles, give every appliance room to open.
Before you fall for the slab or the pro range, walk the plan with a pretend pot in your hands. If you’re already fighting your setup, our roundup of remodel decisions people regret within a year covers the fixes worth making first.
A beautiful kitchen you dread cooking in is just an expensive photograph.
